MAINTENANCE OF THE KAPPA 15 GEBERIT TANK

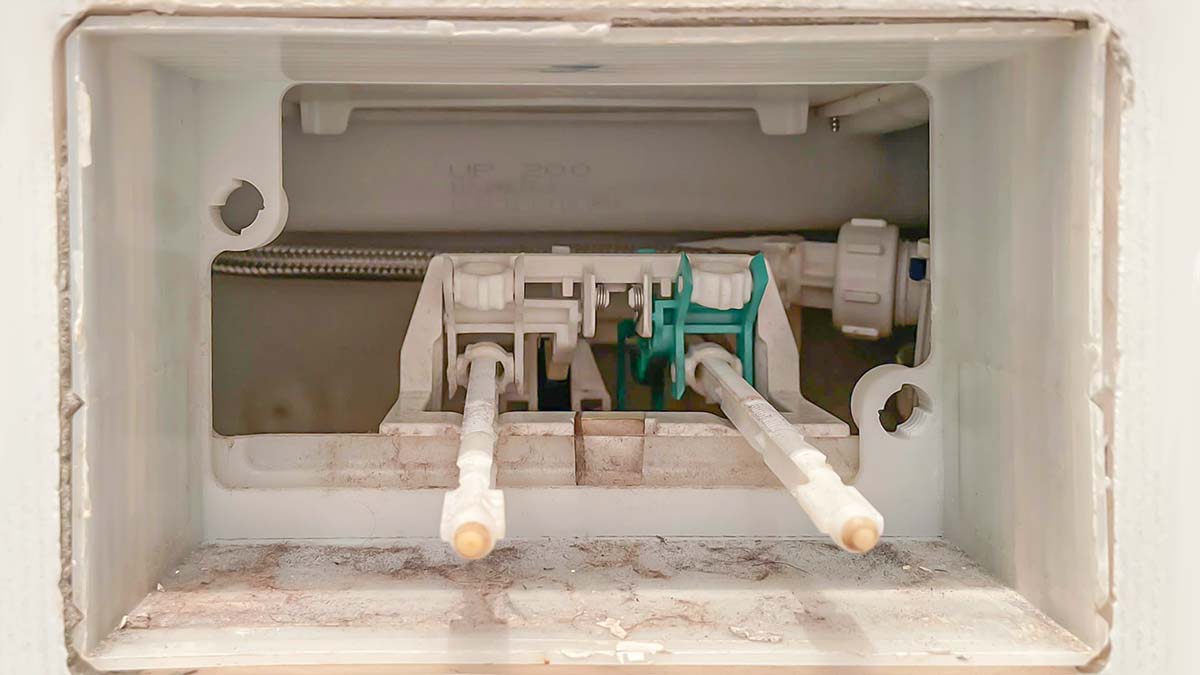

Welcome to the maintenance page for the Geberit Kappa 15 - UP200 concealed toilet.
You can now repair your toilet with the tutorials and compatible parts in stock.
If you have any doubts about compatibility, I invite you to identify it using the reference found at the bottom of the tank, and to insert this reference in my search bar.
If the reference is illegible, send me a photo in the site chat, I will help you find the right spare parts.
LEAK IN THE TOILET BOWL? BROKEN FLUSH VALVE?
If you notice a leak, scale buildup, or breakage, replace the defective parts. Purchase parts individually or choose our 'Trio of Peace' for a complete solution.

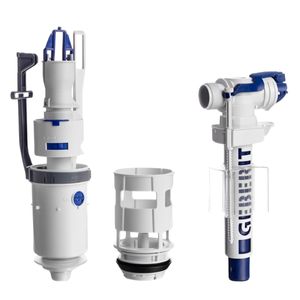

The tranquility trio
mechanism with basin and float valve
If your toilet is severely corroded by limescale, this kit is the ideal solution. This kit allows you to perform a complete maintenance, eliminating all limescale-related problems without compromising on quality and efficiency.
Float valve : Encrusted with limestone
Included in the offer
The inseparable duo
Mechanism and pelvis
Included in the offer
The solo
Float valve
This Geberit float valve has three advantages. First, it's practical: it's easily interchangeable with the same model thanks to the white nut (in your tank). It's silent, slowing the water flow, ensuring smooth filling. Its adjustment is also easy: you have a white spiral rod that allows you to adjust the water level in the tank.
Included in the offer

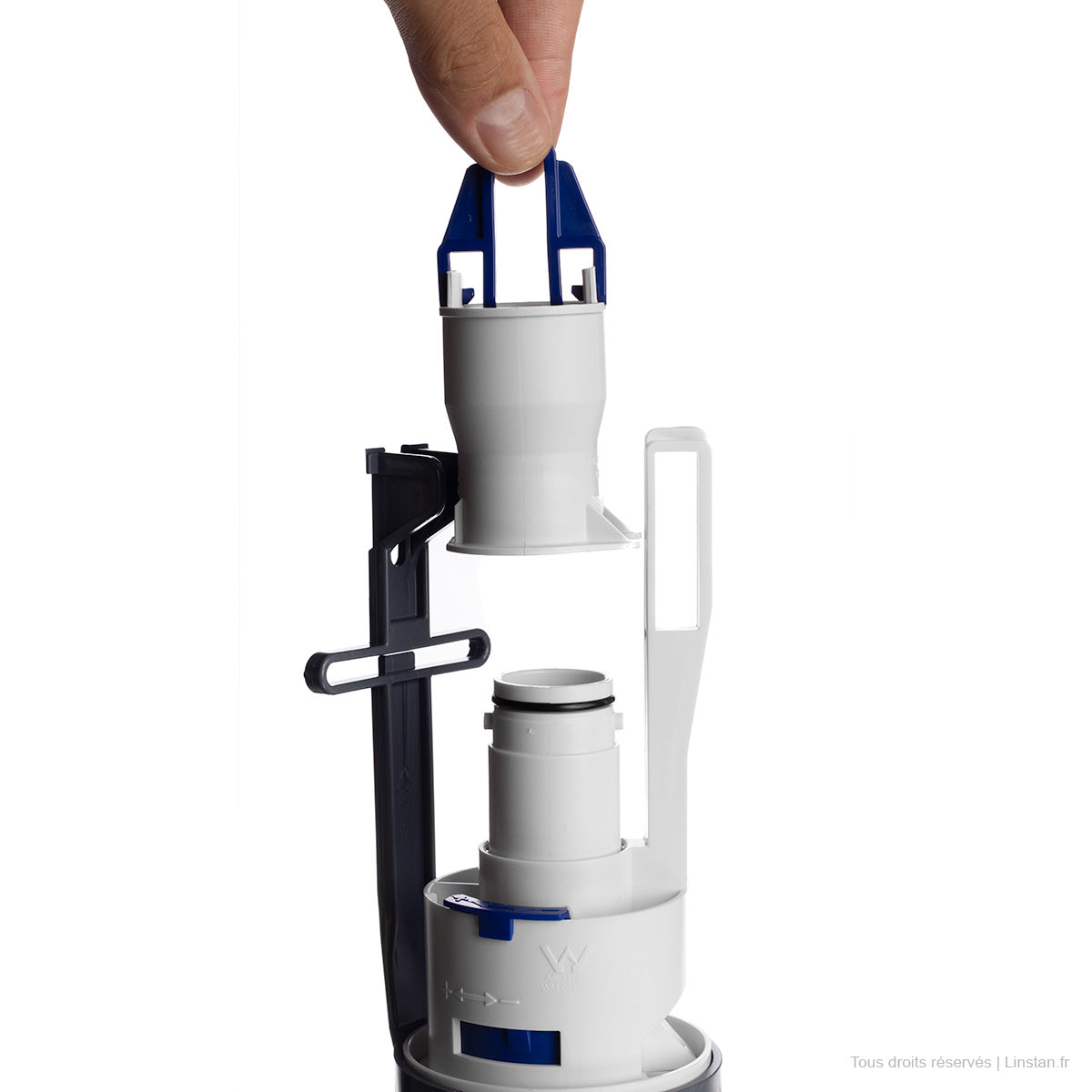

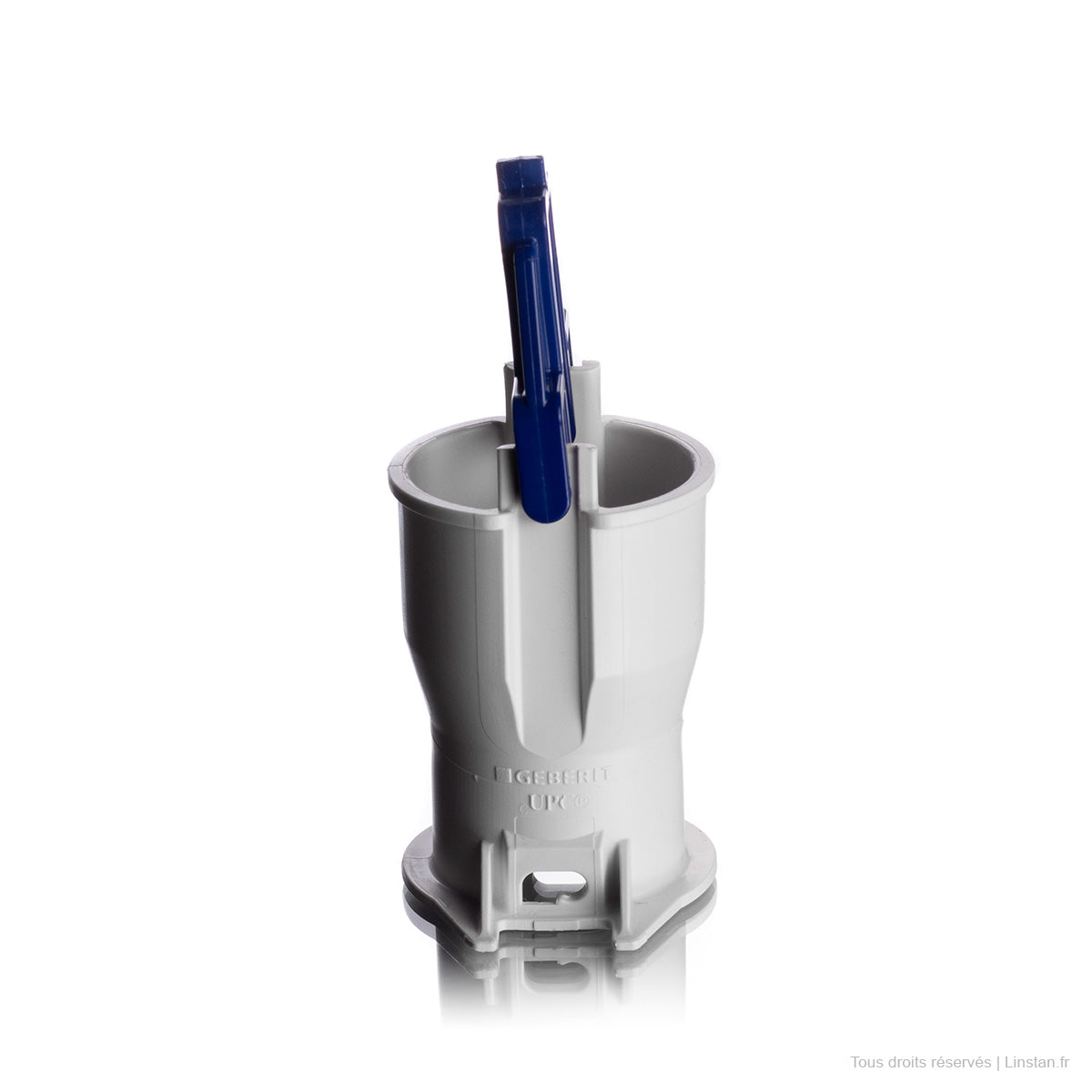

Mechanism

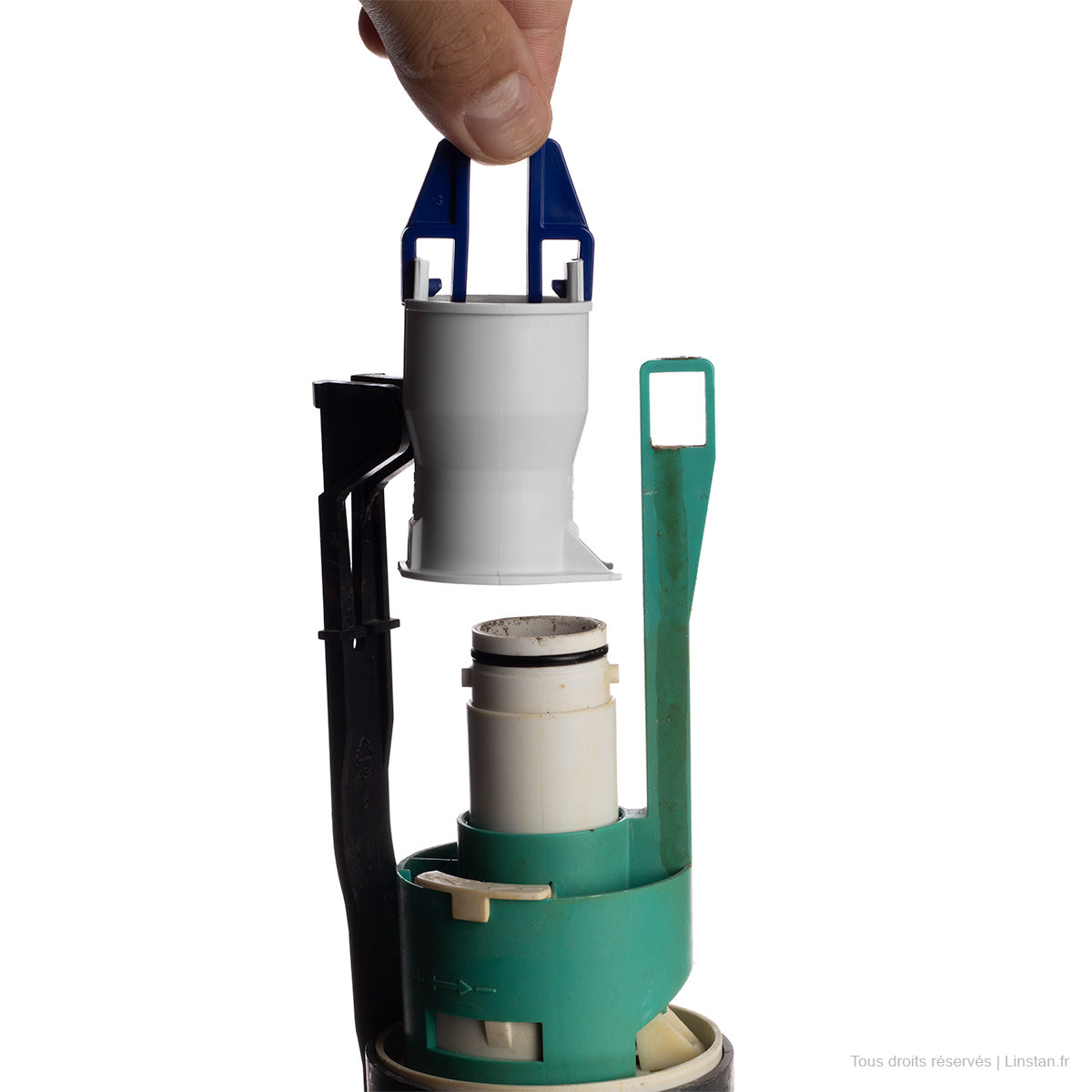

This mechanism is the latest generation. Before, the mechanism was green and white. (And sometimes all white.) Since then, Geberit has changed the colors to blue and white.
Basin
Located at the bottom of the tank and houses the mechanism.
By purchasing from our store,
This is the certainty of successfully repairing your toilet flush!
When a leak appears in the toilet bowl, you can fix it 90% of the time with new flush seals. Here are the three seals compatible with your tank, available individually or as an essential trio.
Essential Trio #1
Sealing gasket, profile and membrane
This kit is compatible if these references are written on your seals: the white seal: 818.109 or 816.418 or 816.179; the black seal: 823.404 or 883.360; the blue seal: standard. You can have several references for the same seal.
Included in the offer
Essential Trio #2
Sealing gasket, profile and membrane
This kit is compatible if these references are written on your seals: the white seal: 818.109 or 816.418 or 816.179; the black seal: 890.615; the blue seal: standard. You can have several references for the same seal.
Included in the offer
Sealing gasket
This seal is compatible if one of these references is written on your seal: 818.109 Or 816,418 Or 816,179
Profiled joint
This seal is compatible if one of these references is written on your seal: 823,404 Or 883,360
Membrane seal
This membrane seal is compatible with your Geberit float valve. It is standard.
Profiled joint
This seal is compatible if this reference is written on your seal: 890,615
LEAKING OR BLOCKED SHUTOFF VALVE?
Over time, the shutoff valve can become blocked and leak when handled. Fortunately, this is easy to repair! Check out my tutorial :)
Handwheel shut-off valve
To replace it, you will need an opening above the support frame.
Included in the offer
The perfect kit
Handwheel stuffing box
This kit is perfect for removing your handwheel cable gland! The combo: WD-40 penetrating oil and a 16mm socket wrench are the secret to removing (without strain) the Geberit handwheel cable gland. Emery cloth Allows you to clean the faucet body. This area can become clogged with limescale. With this kit, you're sure to regain the use of your Geberit shut-off valve.
Included in the offer
Handwheel stuffing box
Essential for repairing the handwheel shut-off valve.
Stopcock handwheel
The shut-off valve is opened and closed with this handwheel.
16mm socket wrench
Facilitates loosening of the flywheel gland.
WD40 Spray
Allows you to unblock toilet stopcocks and stuffing boxes.
Lifelong autonomy
Installing this sticker on your mounting frame will take you directly to this page. Tutorials and spare parts are available at any time! Maintenance will remain child's play.

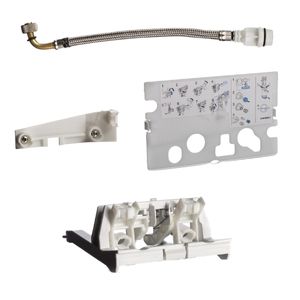

During your maintenance, you may notice that a small part is damaged or missing. Below, I have grouped together all the other small parts that make up your tank.
Flexible joints
These O-rings come in handy if they start to get cut or flattened.
Fixing frame
Fixing clip
Designed to hold the float valve.
Yoke
Flexible
It screws onto the shut-off valve on one side and the float valve on the other.
Protective plate
It reduces the noise of the flush and restricts the support block.
Stem kit
Support block
Compatible with UP200 tank
Support block
Compatible with Artline tank
Sometimes your hob button is damaged, or you might want to change the ambiance. Below, I've grouped together all the hob ranges and their variations. A change is good :)
Filters
7 products
Flush plate, Kappa20 Geberit | Ref: 115.228.11.1 | White finish
Geberit Kappa20 flush plate | Ref: 115.228.46.1 | Chrome finish
Flush plate, Kappa50 Geberit | Ref: 115.260.11.1 | White finish
Geberit Kappa50 flush plate | Ref: 115.260.46.1 | Chrome finish
Geberit Kappa21 flush plate | 2 chrome finishes
Flush plate, Kappa21 Geberit | 2 white finishes
Flush plate, Kappa21 Geberit | Ref: 115.240.KM.1 | Black finish
If your toilet takes a long time to empty, it's because it's scaled up... To fix this, you'll need to remove the bowl, scrape off the limescale, and replace the four Geberit sleeve gaskets. Written tutorial.
Geberit seal set of 4 | For connecting pipes between the Geberit support frame and the toilet bowl
Geberit wall-hung toilet seal | Ref: 152.424.00.1 | For the drain connection pipe, installed on the toilet side
Geberit wall-hung toilet seal | Ref: 387.282.00.1 | Installs on the frame side in the drain hole | Diameter 105mm
Geberit wall-hung toilet seal | Ref: 362.771.00.1 | Installs on the frame side in the injection hole | Diameter 45mm
Geberit AquaClean Descaler | Ref: 147.040.00.1 | 125ml bottle for descaling toilet bowls and cisterns
19 mm open-end wrench | For removing the bowl fixing nuts
Geberit Lubricant 250 ml | Ref: 953.761.00.1 | For joints
