TWINLINE 12 - GEBERIT DOUBLE TOUCH
Welcome to the maintenance page for the Geberit Twinline 12 concealed toilet - dual flush UP130, 110.800.
There you will find all the information you need to repair your toilet as well as compatible parts in stock.
If you have any doubts about compatibility, I invite you to identify it using the reference found at the bottom of the tank, and to insert this reference in my search bar.
If the reference is illegible, send me a photo in the site chat, I will help you find the right spare parts.
LEAK IN THE TOILET BOWL? BROKEN FLUSH VALVE?
If you notice a leak, scale buildup, or breakage, replace the defective parts. Purchase parts individually or choose our 'Trio of Peace' for a complete solution.
The tranquility trio
mechanism with basin and float valve
If your toilet is severely corroded by limescale, this kit is the ideal solution. This kit allows you to perform a complete maintenance, eliminating all limescale-related problems without compromising on quality and efficiency.
Float valve : Encrusted with limestone
Included in the offer
The inseparable duo
Mechanism and pelvis
Included in the offer
DUO N°2
Float valve and hose
If you have the black and white float valve, I advise you to replace it with this latest generation, more compact and accompanied by its flexible hose.
Included in the offer
Mechanism

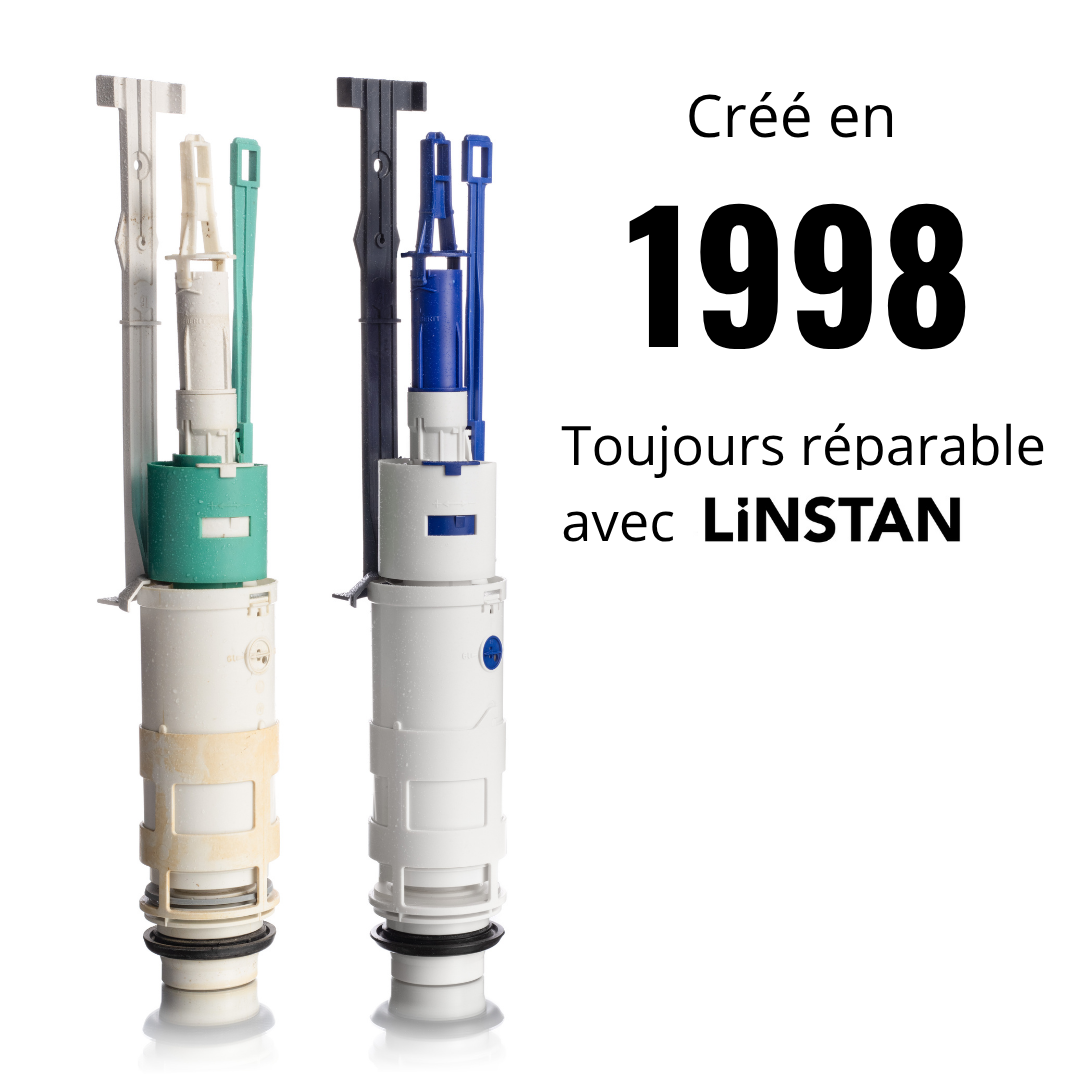

This mechanism is the latest generation. Before, the mechanism was green and white. (And sometimes all white.) Since then, Geberit has changed the colors to blue and white.
Basin
Located at the bottom of the tank and houses the mechanism.
By purchasing from our store,
This is the certainty of successfully repairing your toilet flush!
When a leak appears in the toilet bowl, you can fix it 90% of the time with new flush seals. Here are the three seals compatible with your tank, available individually or as an essential trio.
Optimal Trio #4
Seal, profile, float valve and hose
Perform maintenance once and for all with this trio of gaskets. It reliably fixes 100% of toilet bowl leaks. • Sealing gasket (white gasket): 818.109 , 816,418 Or 816,179 There may be several references for the same seal. • Profiled seal (black seal): 890,615
Included in the offer
Essential Trio #2
Sealing gasket, profile and membrane
This kit is compatible if these references are written on your seals: the white seal: 818.109 or 816.418 or 816.179; the black seal: 890.615; the blue seal: standard. You can have several references for the same seal.
Included in the offer
Sealing gasket
This seal is compatible if one of these references is written on your seal: 818.109 Or 816,418 Or 816,179
Profiled joint
This seal is compatible if this reference is written on your seal: 890,615
Membrane seal
This membrane seal is compatible with your Geberit float valve. It is standard.
LEAKING OR BLOCKED SHUTOFF VALVE?
Over time, the shutoff valve can become blocked and leak when handled. Fortunately, this is easy to fix! Check out my tutorial :)
Complete stopcock
Included in the offer
Lifelong autonomy
Installing this sticker on your mounting frame will take you directly to this page. Tutorials and spare parts are available at any time! Maintenance will remain child's play.
During your maintenance, you may notice that a small part is damaged or missing. Below, I have grouped together all the other small parts that make up your tank.
Flexible
It screws onto the stopcock on one side and onto the float valve on the other, thanks to its integrated white nut.
Protective plate
It reduces the noise of the flush and restricts the support block.
Support block
Suitable for dual flush and single flush tanks.
Trigger rod
Rod that fits into the support block to operate the mechanism.
Flexible joints
These O-rings come in handy if they start to get cut or flattened.

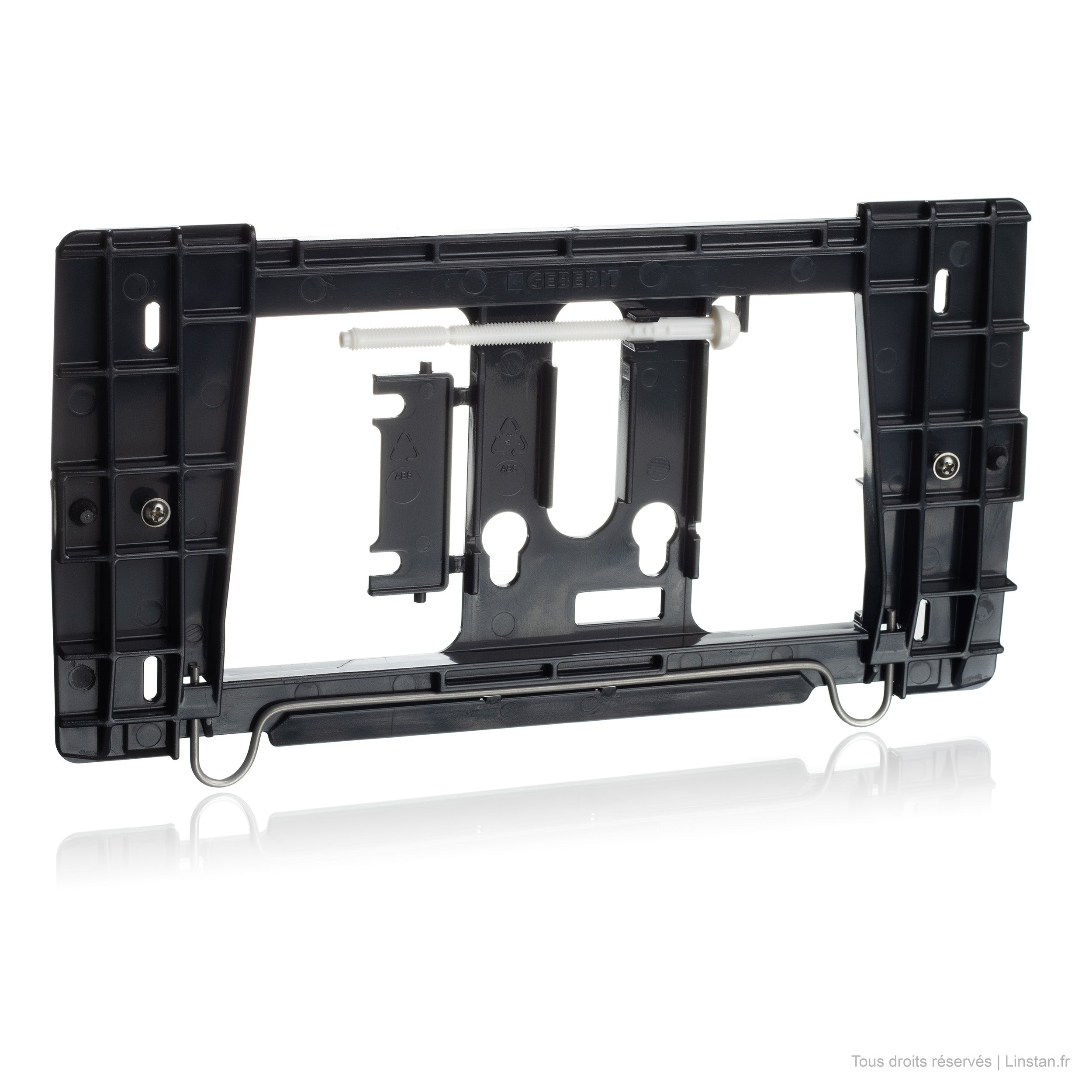

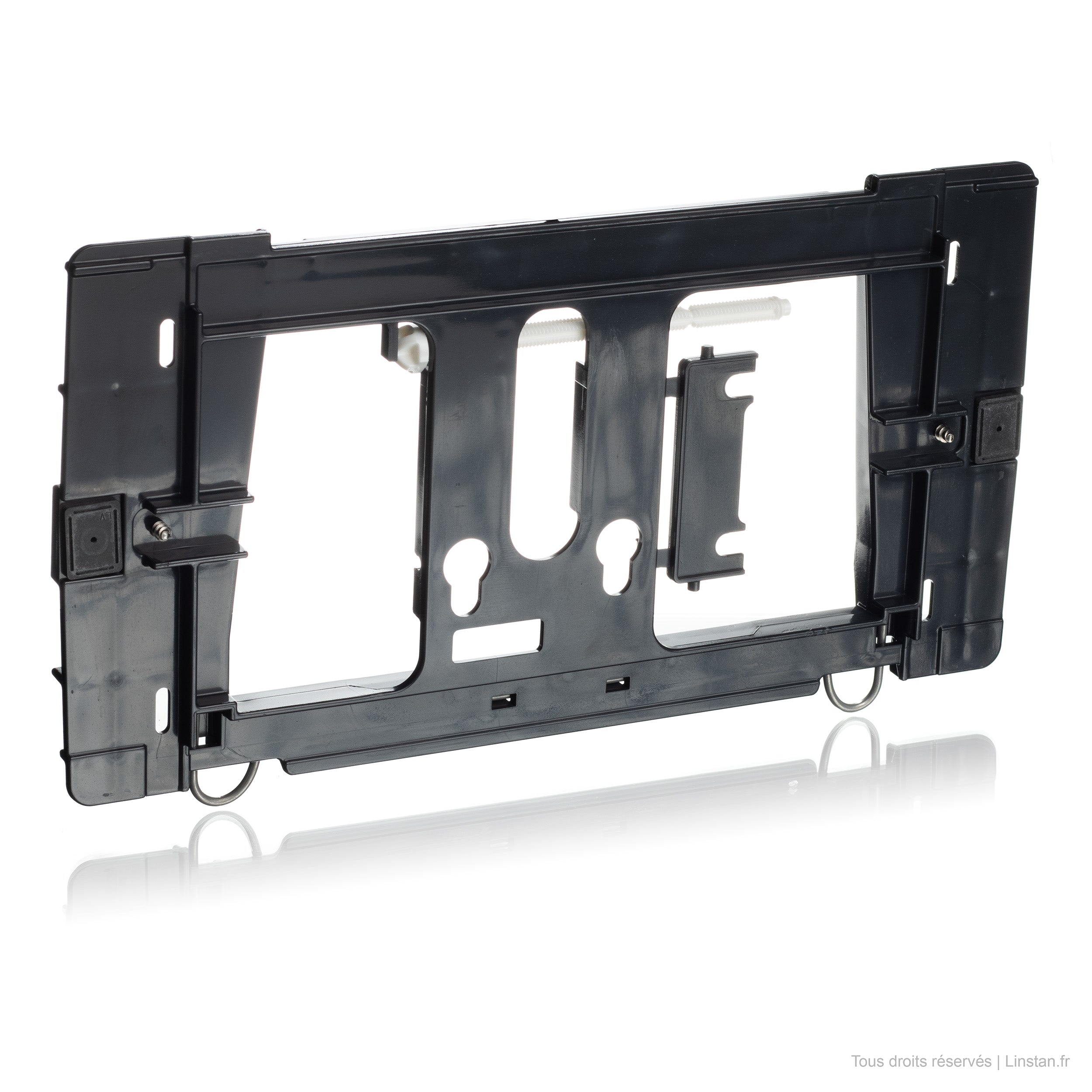

Fixing frame
Stem extension
Allows you to extend the trigger and fixing rods
Fixing rod
Rods for fixing the mounting frame.
Sometimes your hob button is damaged, or you might want to change the mood. Below, I've grouped together all the hob ranges and their variations. A change is a welcome change :)

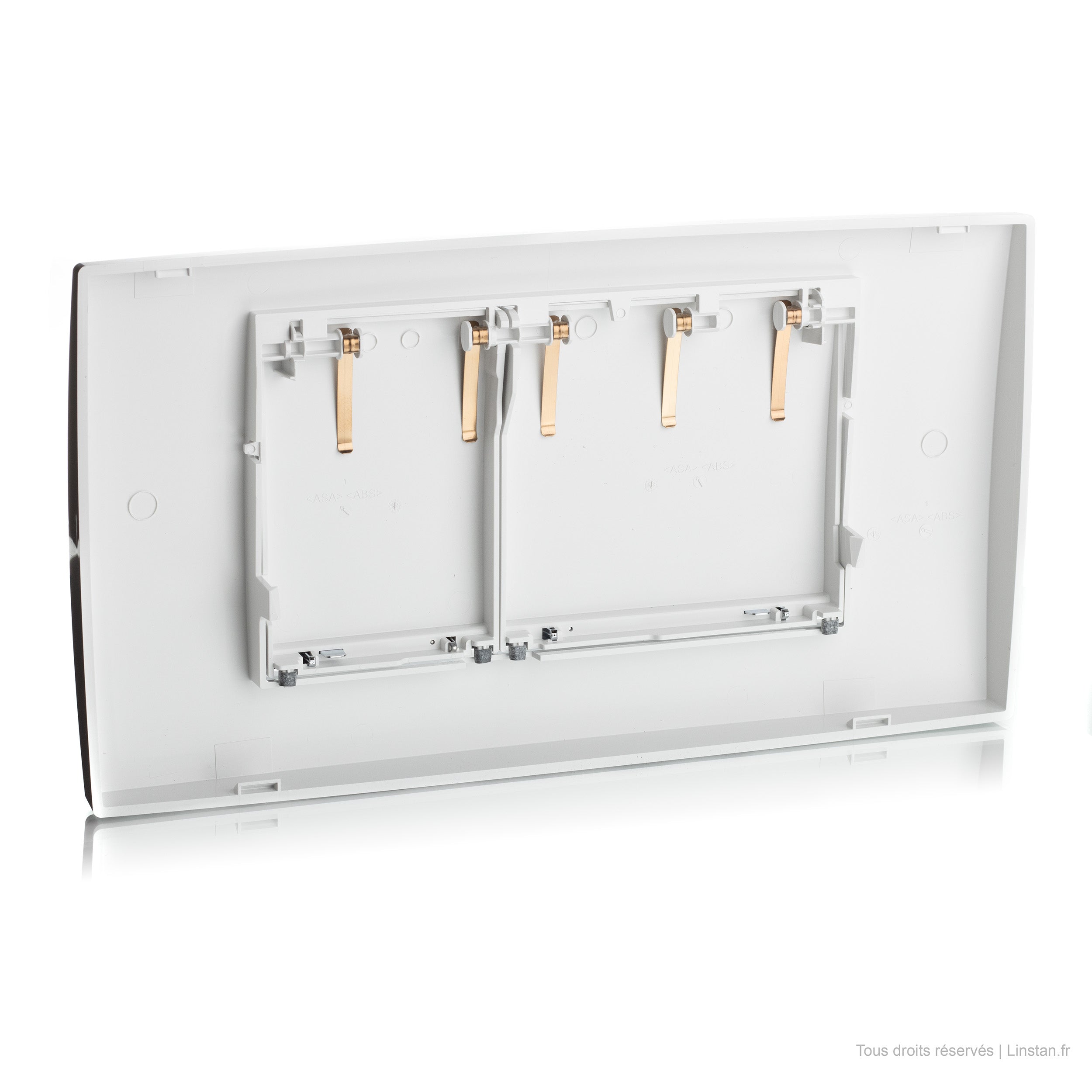

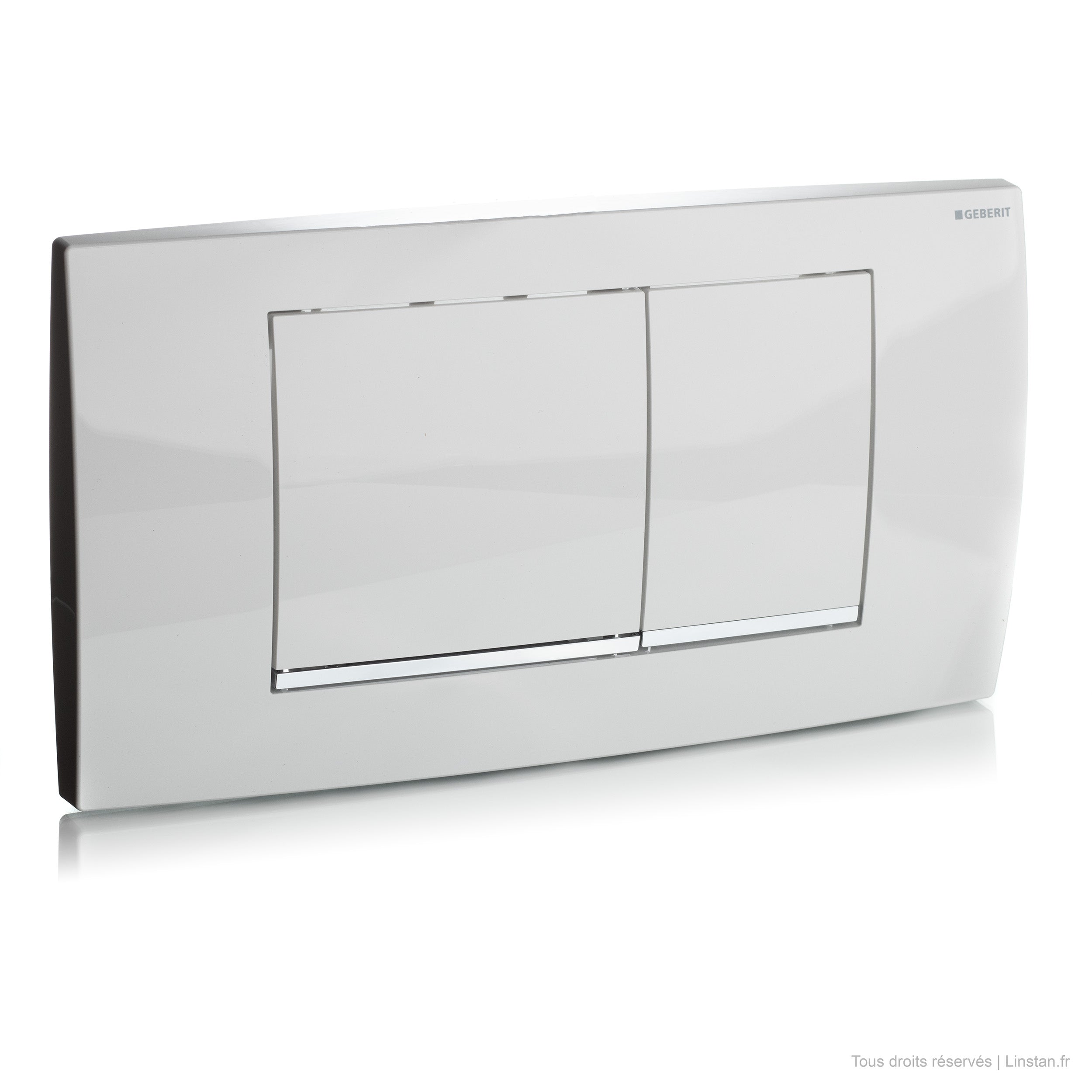

White flush plate
White double-gang plate. You can increase the stability of this plate by using the Twinline extension kit. This kit contains shims that will allow you to better secure the plate to the wall.

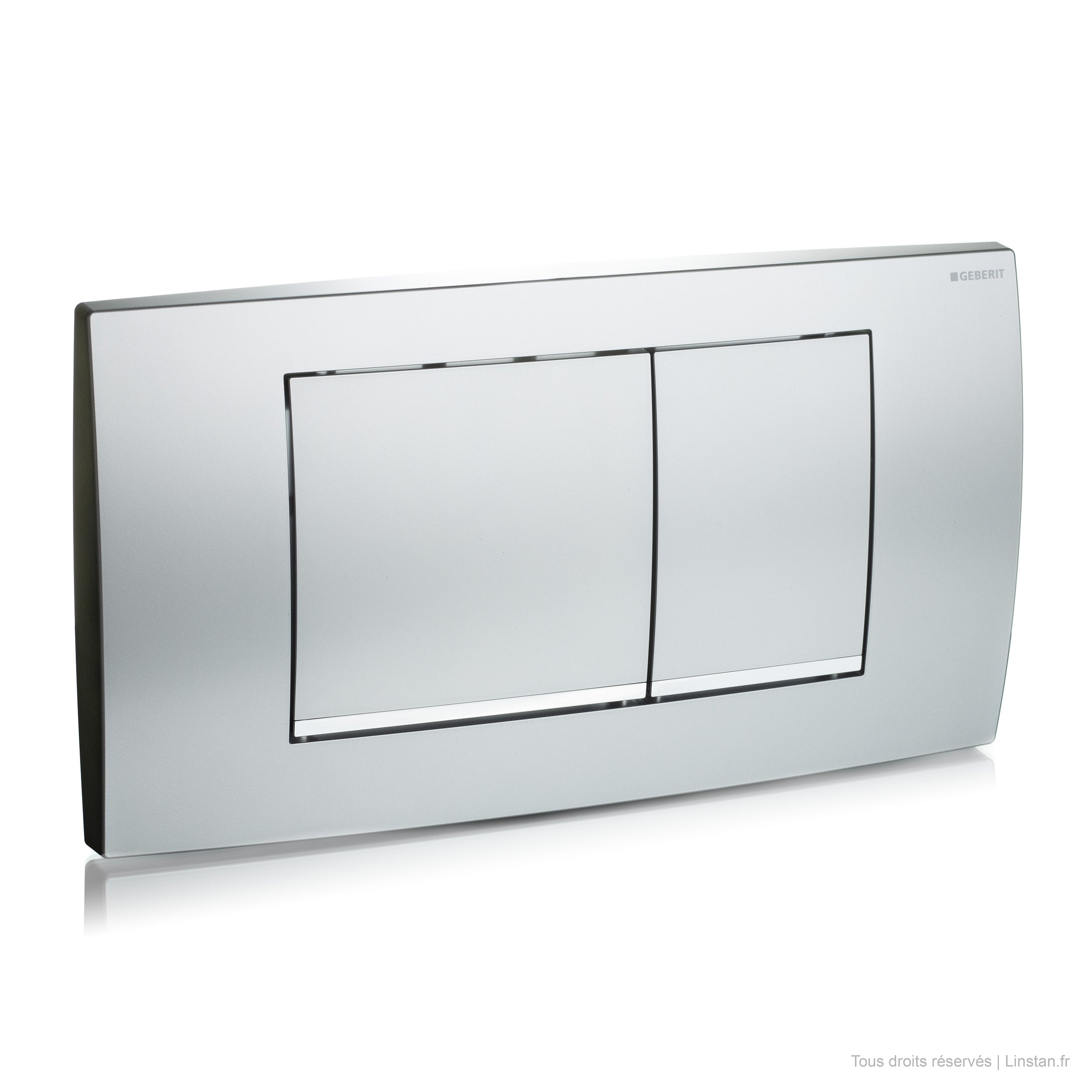

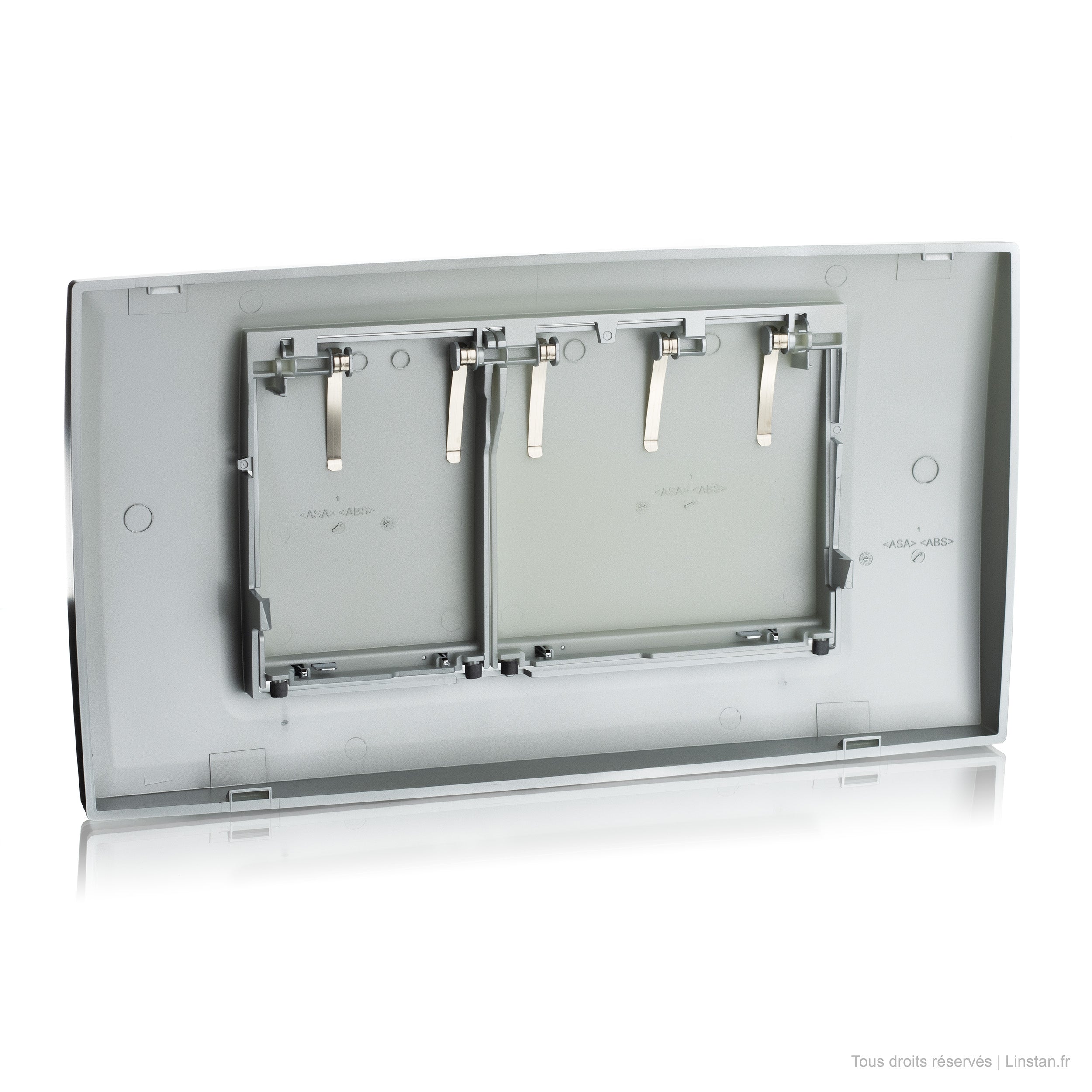

Matte chrome flush plate
Matte chrome double-gang plate. You can increase the stability of this plate by using the Twinline extension kit. This kit contains shims that will allow you to better secure the plate to the wall.
Shiny chrome trigger plate
Shiny chrome double-gang plate. You can increase the stability of this plate by using the Twinline extension kit. This kit contains shims that will allow you to better secure the plate to the wall.
If your toilet takes a long time to empty, it's because it's scaled up... To fix this, you'll need to remove the bowl, scrape off the limescale, and replace the four Geberit sleeve gaskets. Written tutorial.
Geberit seal set of 4 | For connecting pipes between the Geberit support frame and the toilet bowl
Geberit wall-hung toilet seal | Ref: 152.424.00.1 | For the drain connection pipe, installed on the toilet side
Geberit wall-hung toilet seal | Ref: 387.282.00.1 | Installs on the frame side in the drain hole | Diameter 105mm
Geberit wall-hung toilet seal | Ref: 362.771.00.1 | Installs on the frame side in the injection hole | Diameter 45mm
Geberit AquaClean Descaler | Ref: 147.040.00.1 | 125ml bottle for descaling toilet bowls and cisterns
19 mm open-end wrench | For removing the bowl fixing nuts
Geberit Lubricant 250 ml | Ref: 953.761.00.1 | For joints
