REPAIR THE FLUSHING SYSTEM OF THE VERSO 800 SIAMP TOILET
Welcome to the Siamp Verso 800 built-in toilet maintenance page.
There you will find all the information you need to repair your toilet as well as compatible parts in stock.
If you have any doubts about compatibility, send me a photo in the website chat, I will help you find the right spare parts.
LEAK IN THE TOILET BOWL? BROKEN FLUSH VALVE?
If you notice a leak, a scaled-up toilet, or a broken toilet, it's time to replace the defective parts. You can purchase the parts individually or opt for our 'Trio of Peace' for a complete solution.
The tranquility trio

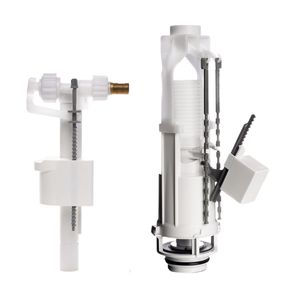

Mechanism, base and float valve
Description
Float valve : Encrusted with limestone
Included in the offer
Mechanism and base
Included in the offer
Float valve
Included in the offer
By purchasing from our store,
This is the certainty of successfully repairing your toilet flush!

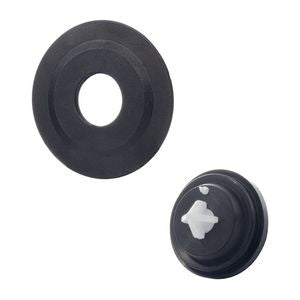

When a leak appears in the toilet bowl, you can fix it in 90% of cases with new flush seals. Here are the two seals compatible with your tank.
Valve seal
Installs on the mechanism
Membrane seal
Installs on the 95L float valve
IS YOUR SHUTOFF VALVE BLOCKED? LEAKING?
Over time, the shutoff valve can become blocked and leak when handled. Fortunately, this is easy to repair! Check out my tutorial :)
12/17 arm tap
Replacement kit for the small supply tap, designed for Siamp built-in or surface-mounted tanks. Faucet - 4 fiber gaskets - emery cloth.
12/17 Angle Valve
Designed for Siamp built-in or surface-mounted tank.
Small adjustable wrench
Facilitates loosening and tightening of nuts.
Fiber and emery joints
To sand the installation side pipe and the brass end of the float valve.
WD40 Spray
Allows you to unblock toilet stopcocks and stuffing boxes.
12/17 Angle Valve
Replacement kit for the small supply tap, designed for Siamp built-in or surface-mounted tanks. Faucet - 4 fiber gaskets - emery cloth.
Straight tap 12/17
Replacement kit for the small supply tap, designed for Siamp built-in or surface-mounted tanks. Faucet - 4 fiber gaskets - emery cloth.
Straight tap 12/17
Replacement kit for the small supply tap, designed for Siamp built-in or surface-mounted tanks. Faucet - 4 fiber gaskets - emery cloth.

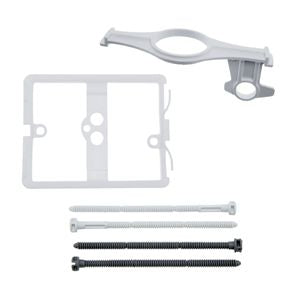

During your maintenance, you may notice that a small part is damaged or missing. Below, I've listed all the other small parts that make up your Siamp Verso 800 tank.
Chassis
Designed to accommodate the control plate.
Spacer
Allows the mechanism to be clamped in the tank.
Trigger screw
Allows the flush to be triggered.
Sometimes your hob button is damaged or you want to change the mood. Below, I've listed the only range of compatible hobs for you. A change is a welcome change :)

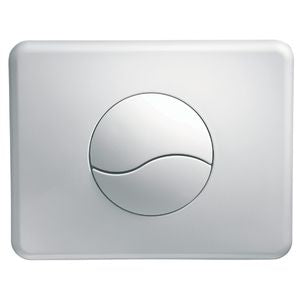

White control plate
Shiny chrome control plate
If your toilet takes a long time to empty, it's because it's scaled up... To fix this, you'll need to remove the bowl, scrape off the limescale and replace the 4 Siamp cuff seals.

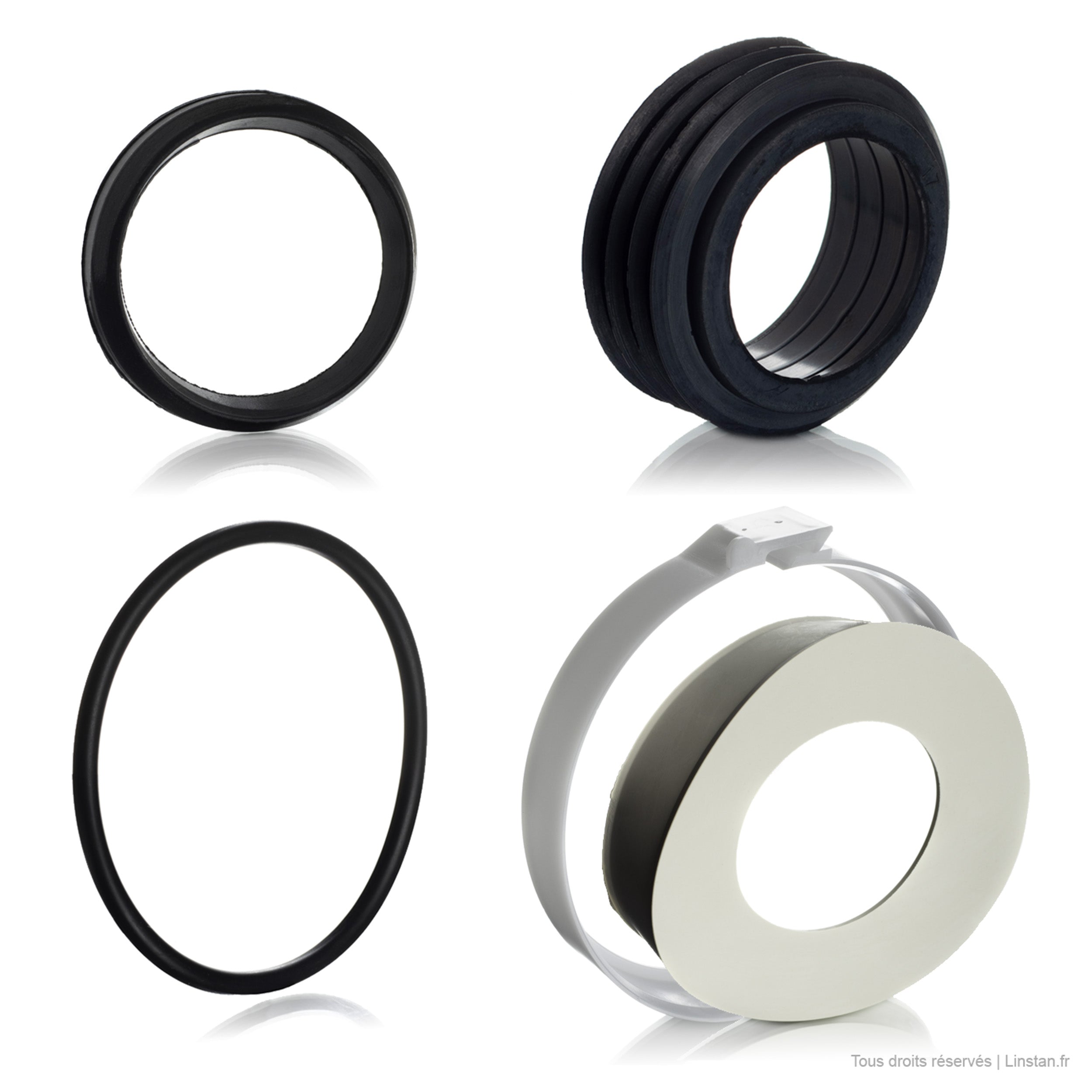

Siamp kit of 4 seals and 2 clamping rings | For connecting pipes between the Siamp support frame and the toilet bowl
19 mm open-end wrench | For removing the bowl fixing nuts
Geberit Lubricant 250 ml | Ref: 953.761.00.1 | For joints
Geberit AquaClean Descaler | Ref: 147.040.00.1 | 125ml bottle for descaling toilet bowls and cisterns
Siamp suspended bowl seal | Ref: 92 4050 07 | For the injection connection tube, installs on the bowl side
Siamp suspended bowl seal | Ref: 34 0143 00 | Installs on the support frame side in the injection hole
Siamp suspended bowl seal | Ref: 92 5000 07 | For the pipe and the connecting tube on the bowl side

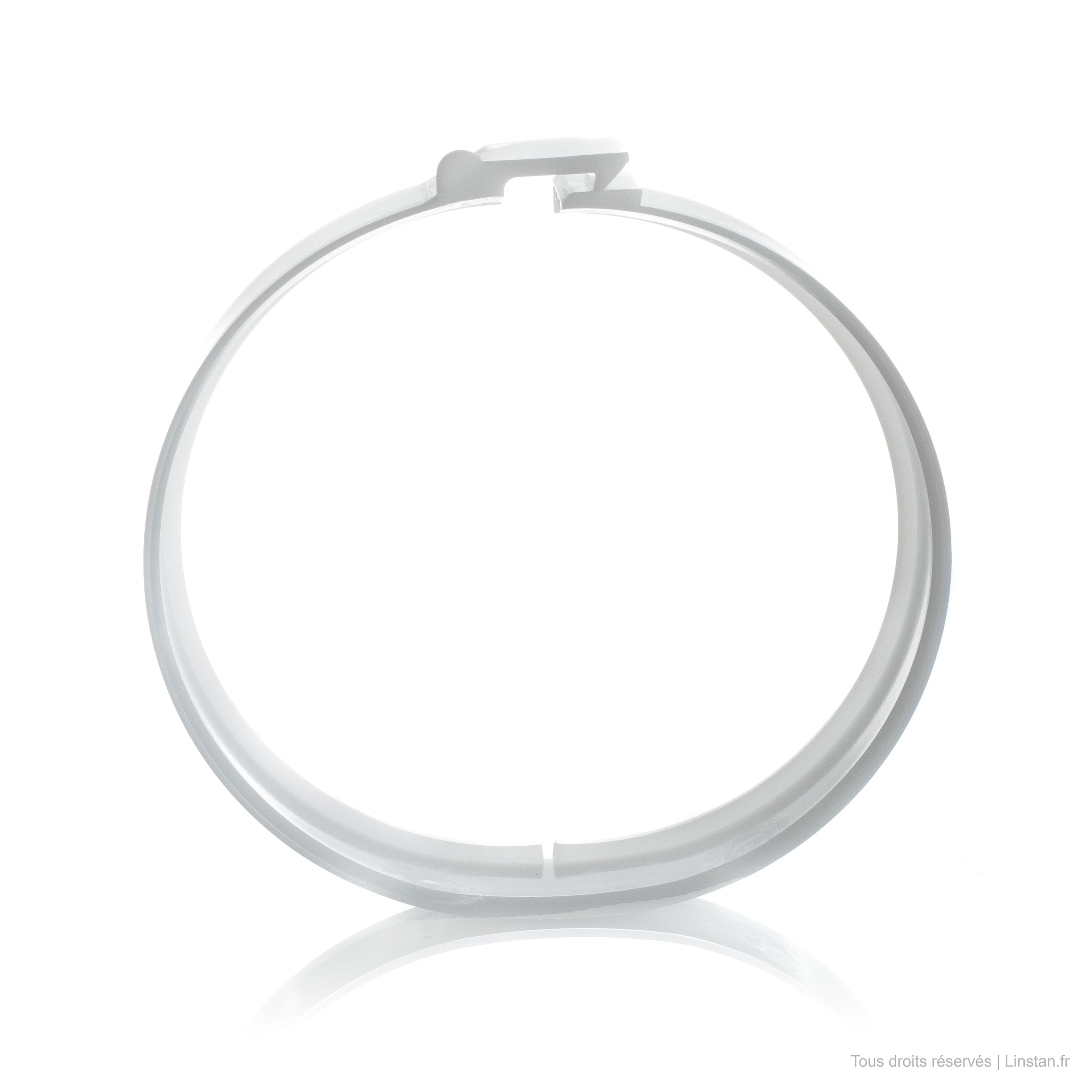

Siamp support frame clamping ring | Ref: 34 3719 07 | To fix the pipe joint and the connecting pipe
Siamp angled injection tube | Ref: 34017907 | For Ingenio, Verso 350, Bâti 500, Bâti 535 and Bâti 536 built-in cisterns
Siamp water injection connection pipe | Ref: 92 4030 07 | With bowl side seal
Siamp angled drain pipe | Ref: 92 2003 00 | for Siamp support frame | Standard length
Kit of 2 Siamp connecting pipes | Ref: 34 1171 67 | With their seals, 2 clamping nuts and 2 nut covers
Siamp 2-piece elbow and straight drain pipe kit | Ref: 92 4000 07 | For Siamp support frame | Standard length
Siamp straight drain pipe | Ref: 92 3020 00 | For Siamp support frame | Standard length
Siamp Adjustable Exhaust Pipe | Ref: 10 0037 57 | For Siamp Verso 350, Ingenio and Verso 145 Support Frame | Standard Length
